Sample Advanced ROOFS

Viewing 4 posts - 1 through 4 (of 4 total)
  • Author
    Posts
  • June 3, 2023 at 6:13 pm #16340
    jkzimmjkzimm
    Participant

    Some roofs I made in Envisioneer to test the roof tool.

    Attached is a Hip on rear, curved arched sides, double pitch front.

    Framing is always using straight rafters to get arced roof in Envisioneer ( fascia / soffits will actually be curved pieces).

    I will post more,   Jack      zimmerdesign.com



    June 4, 2023 at 6:03 pm #16344
    jkzimmjkzimm
    Participant

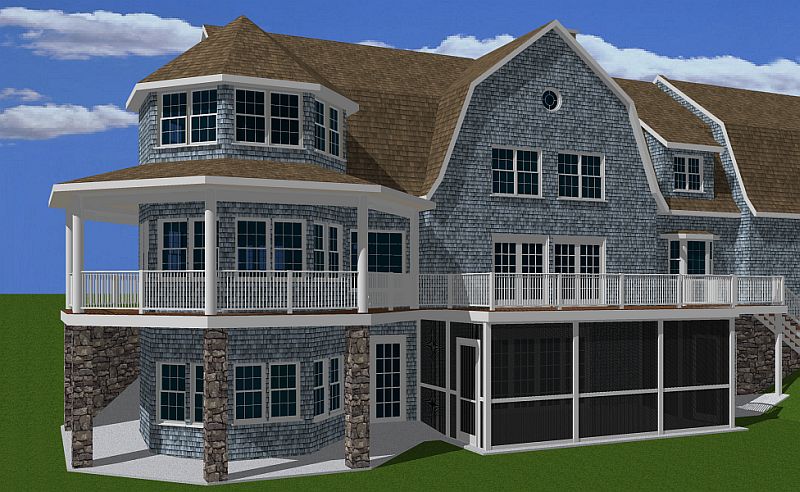

    stone

    These a primarily the simple roofs made by Envisioneer.  The 4 Gable roof requires some node edits but is doable. The arched involve playing around with degrees at both start and end of pitches, fun to experiment with.

    The last renders are some samples I tested. The one with Porches came out almost exactly like the built as home.

    Jack       zimmerdesign.com

    • This reply was modified 10 months, 3 weeks ago by jkzimmjkzimm.
    June 14, 2023 at 6:06 pm #16372
    jkzimmjkzimm
    Participant

    Here one I call Battle of the Bulge… the Line tool is used to define break points on left right / front back.

    This is a single roof with straight and segments pulled out to create curves. Mainly hips with curved areas. Pretty simple to define pitches, a bit of work to get left right breaks matching, that is where the line tool comes in.

    I’m fascinated by the framing view.

    Jack

    • This reply was modified 10 months, 2 weeks ago by jkzimmjkzimm.
    June 30, 2023 at 6:07 am #16424
    conweconwe
    Participant

    Thanks for sharing Jack that’s some good work!

    Conrad
